Thursday 27 August 2009

It’s been sometime since I updated

Noticed it has been a little time since I updated this. Not sure anyone is following this?

What have I been doing, well rubbing down, filling and painting. Someone said to me, that when you get to the point of painting, then you are 50% done. I can understand that now. It does take some time and I am only on the undercoat. I am also having some difficulty deciding what shade of green to paint the car. There is a book of colour photos, but with the vagaries of early colour photography, the darkening of varnish over time, it is very difficult to find a colour I am happy with. Using a reject side frame that has been panelled, I have been experimenting with some shades of green. Since no one can recall, I suppose no one is going to say that it is wrong???

Friday 17 April 2009

Fitted the Upper Saloon Vestibules

Upper Saloon Vestibule Fitted

A few weeks ago, I fitted both upper saloon stair vestibules and destination screens to the upper saloon. The wiring runs under the vestibule screen.

Monday 13 April 2009

Finished the trim on the lower saloon



Wet Easter, so finished the trim on the lower saloon.

Upper and Lower Saloon

Chroming the brass parts

Chrome

The Lochee car like many from the 1930’s had chrome fittings. I purchased a kit to attempt home chroming of the various fittings. Some time was spent in trial and error but the final results seem ok.  Here are some parts after chroming. The process used a small electric wall power unit, hence the cable for the negative on the controller top plate.

Tuesday 17 March 2009

Model Tram Article in Model Engineer Magazine



I picked up a copy of Model Engineer magazine yesterday and discovered that they are going to be running a series of articles written by Ashley Best on building model trams. The series starts on the 27th March.

IMG_0599

Visiting Tramcar

A couple of Ashley’s models running on the former layout at Stockwood Park.

Sunday 18 January 2009

Front Platforms

The front platform dash is made from brass sheet. The headlamp surround has been soldered to the front. This required a fair amount of heat from a mini-blow torch.

P1300007

P9280003

Here we jump a few steps ahead with the platform dash, vestibules and platform together. Some modellers pin the dash to the platform, but I chose to make small brackets from brass soldered to the dash and then bolt the dash to the platform. At this point the vestibules were being glazed with glass. The glass is old large microscope slides cut to size with a diamond cutter and then carefully ground to size using a sharpening stone. All the glazing in the model is glass except the lower saloon quarter lights – I am considering replacing these since the upper saloon quarter lights are now glass.

P7250001

Here is the platform in place.

Saturday 17 January 2009

Tramcar Seats

When planning the construction of the model, research and experimentation takes up a large part of the time.

I sought out photos or plans of  the seats that were used in the tram and obtained this document from the National Tramway Museum library.

 Seat Page

Here is one of the tram seats made up. This was one of the prototype seats and was painted for the upper saloon.



Cast Seat Front View

The lower saloon seats were covered in a moquette  cloth.

Moquette Seat Covers

I used transfer paper to create the effect of the cloth.

seat small 1

And here are the upper saloon seats that were covered in antique red leather.

You can find more details on their construction on the website.

Wednesday 14 January 2009

Start at the beginning

underframe 3

This was some 8 years ago. The under frame for the model. I am going to step through the build quite quickly to where I am now. A useful book to aid building large scale trams is Peter Hammond’s book  “An Introduction to Tramway Modelling” which you can buy here TLRS SALES.

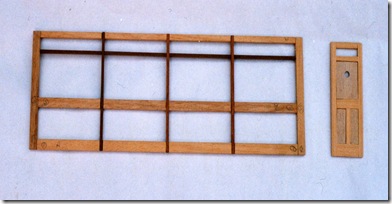

lower saloon sideframe 1

Here is one of the lower saloon side frame and a saloon door.Lower Saloon Bulkhead1

And this is one of the lower saloon bulkheads.P1170001

These all go together to create the lower saloon.

You can see more details at my website Building a 3/4 inch Dundee Lochee Car

What is the model?

Dundee 19 New

It is a Dundee Corporation Tramways tram built in 1930 by Brush of Loughborough. There were ten trams carrying numbers 19 – 29. I have chosen to build car 19 which was the first car delivered in 1930. The cars were originally planned to operate on the Downfield route, but were found to be too wide for the track spacing on most of Dundee’s routes. Instead they spent their life on the Lochee route, gaining the nick-name Lochee cars.

The model is built to a scale of 1/16 or 3/4 inch to 1 foot.

Tuesday 13 January 2009

Starting off

This a new experience! Travelling in the blog world.

I used to post updates to a forum, but that got deleted so thought I would give this medium a whirl.
